图2
Download original image

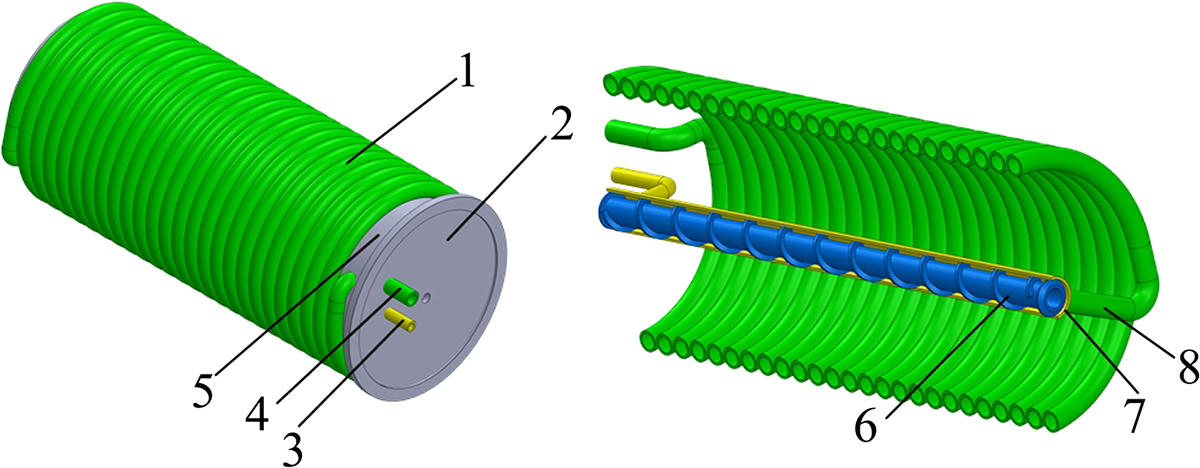

浸没燃烧锅炉反应器结构
1.外螺旋管；2.锅炉反应器端盖；3.过冷水入口；4.过热蒸汽出口；5.锅炉反应器壳体；6.内套管；7.外套管；8.内、外螺旋管连接处
